Xtra Dock Safety

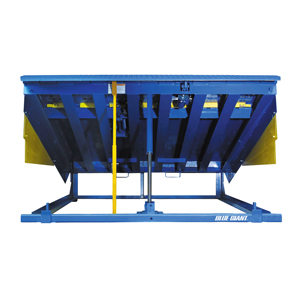

The Blue Giant XDS prevents forklift roll-off and overhead door damage at the loading dock. When introduced to the market in 2000, it was the only two-in-one combination of dock leveler and safety guard, and it remains at the forefront of dock safety technology today.

loading dock safety where it's needed most

In theory, a loading dock's overhead doors should be closed when loading or unloading is not taking place. In practice, doors are often left open while the dock leveler is parked, either to let the cool air in or get rid of noxious air that has built up throughout the day.

When the XDS is in the parked position, the Door and Dock Guard (DDG) sits 7 1/2" (191mm) above ground level, deterring accidental forklift roll-off. When the door is closed, the DDG remains in place, protecting it from impact damage that could result in a security risk and expensive downtime.

PRODUCT HIGHLIGHTS

  • Operated via the Blue Genius™ Touch Control Panel, which ensures ease of operation and alerts both drivers and dock attendants to potentially unsafe conditions
  • Operating range is up to 12” (305mm) above and 12” (305mm) below the dock leveler
  • Comes complete with a 1HP, Totally Enclosed Non-Ventilated (TENV) power pack system
  • A hydraulic velocity fuse that limits the loaded ramp’s free fall to within 3“ (76mm)
  • Yieldable lip safely collapses if struck while in the extended position
  • Full operating range toe guard protection (painted safety yellow as specified by ANSI Z535.1)
  • Stationary side toe guards with high-visibility OSHA safety striping
  • The integral maintenance strut supports the deck and lip for safe maintenance and inspection procedures

Related Links

RECOMMENDED APPLICATIONS

  • High-volume loads
  • Frequent usage (24-hour operations)
  • Fast-paced environments

AVAILABLE UPGRADES

AVAILABLE OPTIONS

  • Lights communication package
  • 18” (457mm) and 20” (508mm) long lips
  • Brush and rubber weather seals
  • Environmentally friendly biodegradable oil
  • Pour-in pan to facilitate new construction
  • New construction pit kit
